Центробежный распылительный насос

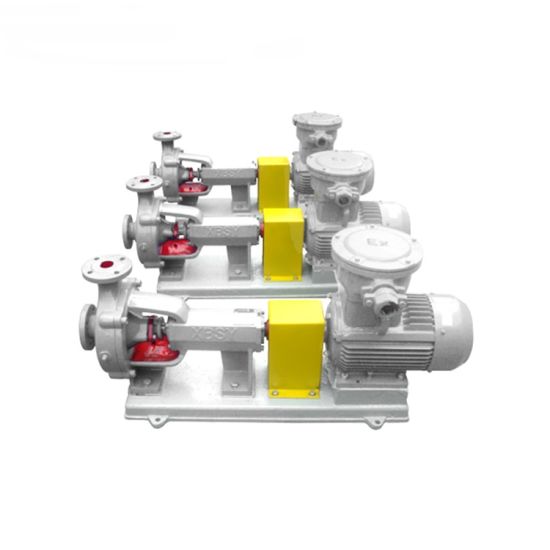

32PL ELECTRICAL SPRAY PUMP

32PL Electrical Spray Pump

Original text Spray Pump With Electric Motor

Electric motor power sprayer pump is the mud pump supply pump, can have motor drive, so also known as electric sprinkler pump. Mechanical, packing double seal, no leakage Wear — resistant cast iron is used for flow parts with long service life Compact structure, beautiful and generous…

Electric motor power sprayer pump is the mud pump supply pump, can have motor drive, so also known as electric sprinkler pump.
Mechanical, packing double seal, no leakage
Wear — resistant cast iron is used for flow parts with long service life
Compact structure, beautiful and generous explosion-proof motor, special for oil field

It is mainly used for oil drilling mud pump supporting equipment, mainly used in the running process of the pump cylinder liner, piston for flushing and cooling and other mud transport occasions.

Spray Pump is especially matched for mud pump for oil drilling, with the function of flushing and cooling sleeve and pistons in the process of pump operation, as well as include the other situation for transportation mud. We have 7 models of 32and 40 with two structures of direct connection and belt connection value.

Features

No Leakage: Use combined seal relying mainly on mechanical seal and packing subsidiary, the mechanical seal is designed by us with patent ZL20072 007957.2. The service life is 6 times as normal mechanical seal.

Bidirectional Rotation:Straight blade designed bi-directional rotation makes perfect performance.

Beautiful Appearance: the structure is compact and beautiful.

Спринклерный насос представляет собой горизонтальный одноступенчатый однокамерный центробежный насос, который используется для охлаждения и промывки втулки и поршня буровых насосов с целью продления их срока службы, а также для перекачивания воды с температурой до 80°C или сточных вод с низким содержанием песка. Если спринклерный насос используется вместе с буровым насосом, он имеет ременной привод, в других же случаях используется механический привод.

The spray pump is a kind of single stage single suction horizontal volute pump.It is used to cool and wash the liner and the pistion of the drilling pumps,so as to prolong their service lives,or transfer water that temperature is less than 80 degree celsius or sewage water contains a little sand.It can be belt driven when used on drilling pump or be driven by motor for other use.

Spray pump is single stage single suction horizontal cantilever centrifugal pump. used for oil drilling pump steel sleeve,piston spray,cooling,lubrication, can also be used to deliver water which below 80 ºC,or containing a small amount of sediment . spray pump and oil-drilling pump supporting use belt transmission somesites can also be directly with motor.

Function
Impeller rotates generating centrifugal force,
and the spray pipe assembly takes the water in the water tank to the cylinder liner,
cooling and lubrication to the cylinder liner and piston.

Feature
1. It has reached the world standard of the same type of products, and is very much welcomed on domestic and foreign markets.
2. It can operate normally both in positive direction and negative direction on change .
3. It is smooth in operation, convenient in installation, adjustment and maintenance.
4. This pump is a patented product.
