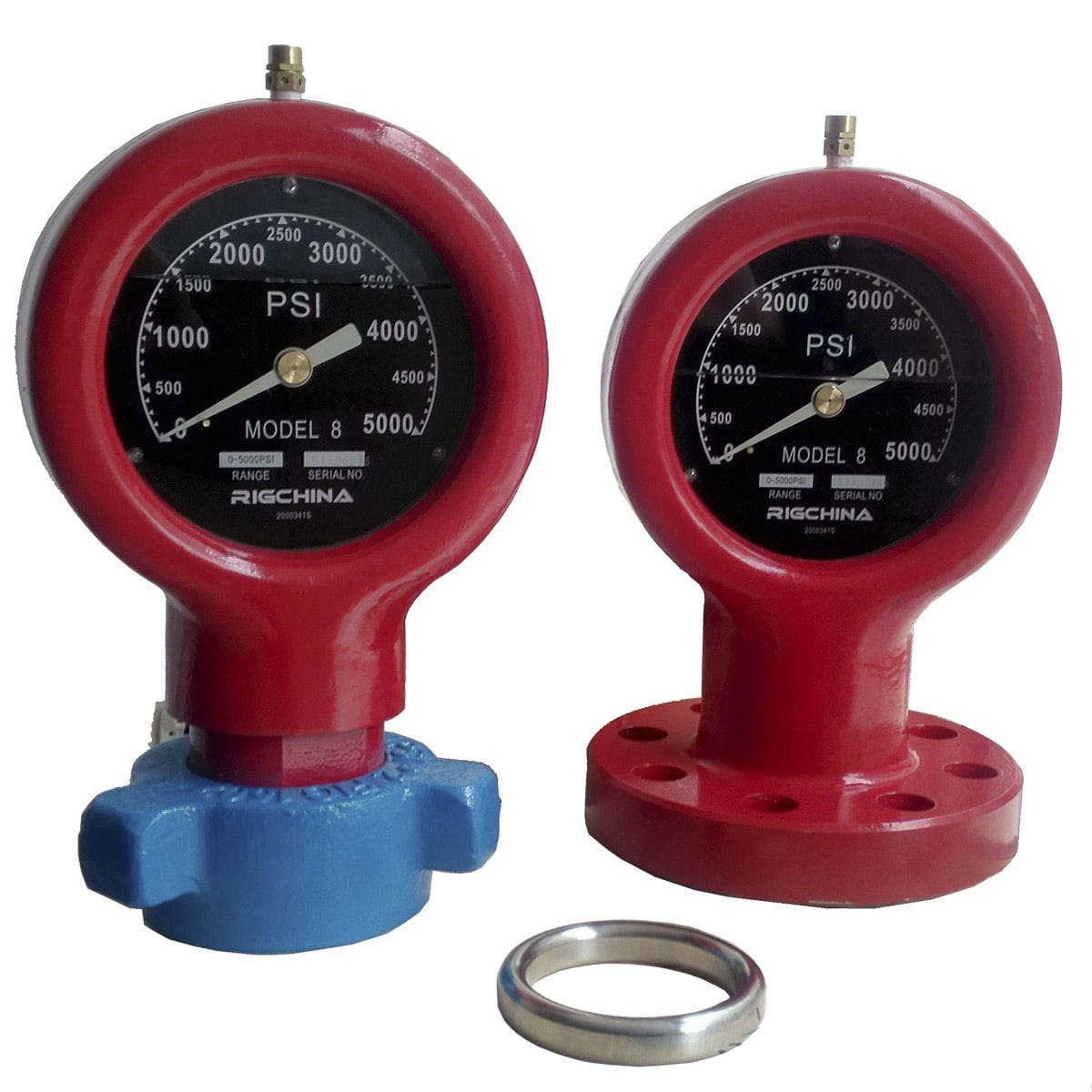

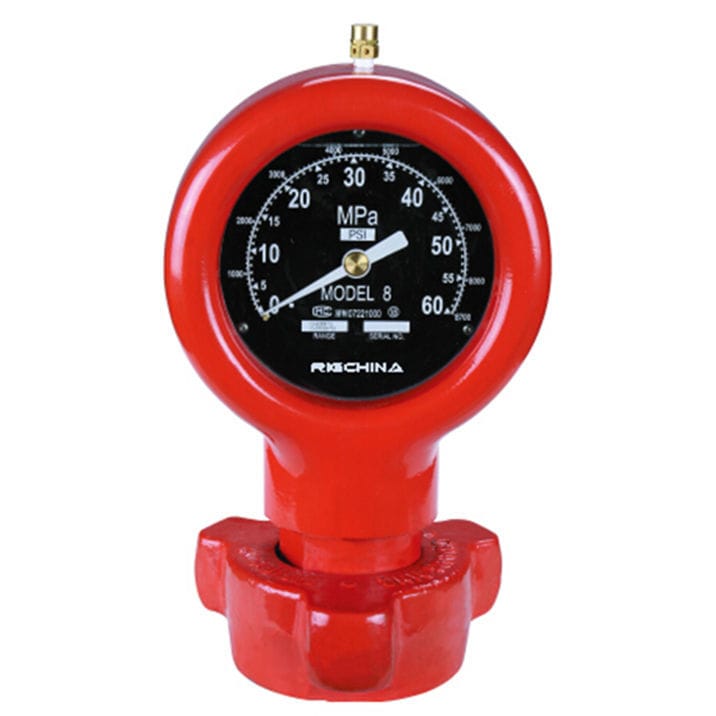

Манометр для нефтяных месторождений тип F3 YK-200Y

Манометр для нефтяных месторождений тип F3 YK-200Y

• Дисплей: циферблат
• Технология: диафрагма
• Применение: для шламовых насосов
• Давление: Max.: 20,000 psiMin.: 1,000 psi

RIGCHINA’s gauges provide quick, accurate readings of your rigs. RIGCHINA Stand Pipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.

Interchangeable with Cameron type gauges Temerature range -20 to 250(-29 to 121) 3 gauge models offering a multitude of sizes,pressure ranges and sub end conections Sub end connections made from steel,stainless steel or bronze. Dial ranges in PSI,BAR,KGC and KPA. Model 8 gauges offer dual unit of measure. Cases made with aluminum . Sour gas and charpy available. Flanged subs can have inconel or stainless steel inlays Hummer Union end and Flange connections. Xylan coated high pressure adapters Pressure plug on backside for safely.

Model 8 Main Technical Specification:

Dial sizes: 8-1/8″ (206 mm) dials Accuracy: ± 1.6% of full range Threaded:UNION,2” FIG.1502 Male UNION,2” FIG.2002 Male UNION,2” FIG.2202 Male UNION,3” FIG.1502 Male UNION,3” FIG.1502 Female Pressure Range: 7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa, 100MPa,120MPa and 160MPa 1,000 PSI, 1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI 70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar, 1,040 Bar and 1,400 Bar Size: 6.5″ × 6″ × 10.2″ (16.5 × 15 × 26 cm) Weight: 33lb (15 kg)
