САЛЬНИК УСТЬЕВОЙ
Сальник устьевой

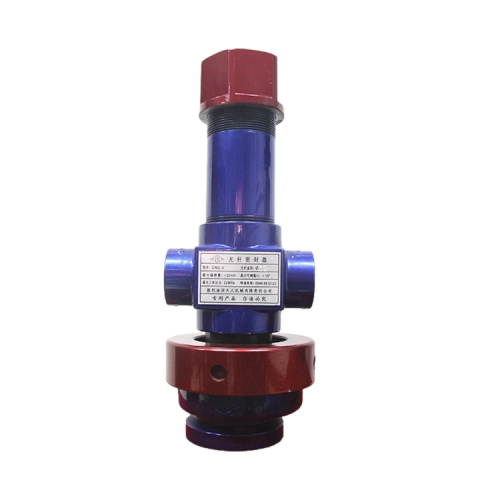

OILFIELD STUFFING BOX
Oilfield Stuffing Box
|
Name Parameters |
CWG-series polished rod stuffing box | Remarks | |
| Model | CWG25～CWG38 | ||
| Max. Diameter（in） | 7 | ||
| Max. Height(mm) | 18 | ||
| Working pressure(psi) | 3600 | ||
| Joint mode | Clamp type, coupling type | ||
| Suitable polished rod diameter(in) | 1,1 1/8,1 1/4,1 1/2 | Customizable | |
| Max. aligning and deviation adjustment | Axial ±10°, radial ±20mm | ||
| Weight（lb） | 53 | Standard: SY/T5029-2013 | |
