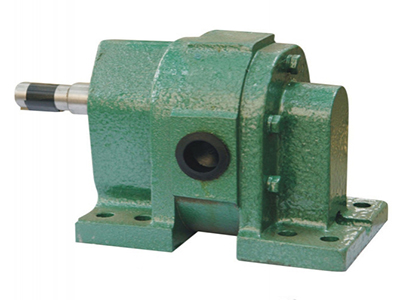

ШЕСТЕРЕННЫЙ (ШЕСТЕРЕНЧАТЫЙ) МАСЛЯНЫЙ НАСОС 2S
Насос масляный зубчатый 2S
2S Gear Oil Pump
2S gear oil pump
Шестерёнчатый масляный насос 2S,Маслонасос системы смазки,Насос масляный зубчатый 2s,Насос масляный зубчатый в сборе
Шестерёнчатый масляный насос является основным элементом системы смазки приводной части буровых насосов. Данное устройство применяется в системах смазки под давлением, подавая смазочное масло на коренные и шатунные подшипники, поршневые пальцы, подшипники крейцкопфа и т.д.
The 2S gear oil pump is the main element for the lubricating system of the power end for mud pump. This lubricating oil pump is usually installed on the pressure lubrication system, offering lubricating oil for crosshead, crosshead bearing, extension rod, etc.
2S gear oil pump is the main fittings of the power end lubrication system of oil drilling equipment mud pump, which is used for mud pump of F series and 3 NB series.
The power end of the mud pump, by both forced lubrication and splash lubrication methods, is installed on the 2S gear oil pump in the fuel tank. The pressure oil is transported to the crosshead, guide plate, intermediate draw bar and each bearing through oil tube, for the purpose of forced lubrication. The operation of gear oil pump can be observed through the pressure gauge at the end of the rack.
Main parameters of 2Sgearoil pump:
1.rotate speed 1400 rpm
2.flow rate 1 L/min
3.overall dimension(mm) 200 ×98×125
| Bomco/ Emsco |
F-1300 | FB-1300 | F-1600 | FB-1600 | FA-1300 | FA-1600 | FC-2200 | F-1000 | F-800 | F-500 |
| F-350 | DB-550 | D-700 | DA-700 | D-300/500 | D-375 | |||||
| Китайские модели | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 | N1300 | C-250 | E-700 | G-100 |
| K-500 | K-380 | K-500A | K-700A | C-250 | C-350 | JWS-400 | ||||
| Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG-KXG | FQ-FXQ | FF-FXF |
| Oilwell | A-560-PT | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| Российские модели | UNBT-950 | UNB-600 | 8T-650 | NBT600 | UNB1180 | UNBT1180L | 3PN1600 | E1600 | ||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||||
| Wirth | TPK1000 | TPK1600 | TPK2000 | |||||||
| LS ( Китай ) | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A | ||||
| Ellis | E-447 | E-2200 | ||||||||
| Drillmec | 9T1000 | 12T1600 | ||||||||
| Прочие : HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS,WILSON, GASO, SKYTO, BREWSTER, WETHERFORD | ||||||||||
Mud Pump Model List
| Bomco/ Emsco | F-1300 | FB-1300 | F-1600 | FB-1600 | FA-1300 | FA-1600 | FC-2200 | F-1000 | F-800 | F-500 |
| F-350 | DB-550 | D-700 | DA-700 | D-300/500 | D-375 | |||||
| National | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 | N1300 | C-250 | E-700 | G-100 |
| K-500 | K-380 | K-500A | K-700A | C-250 | C-350 | JWS-400 | ||||
| Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG-KXG | FQ-FXQ | FF-FXF |
| Oilwell | A-560-PT | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| Russian | UNBT-950 | UNB-600 | 8T-650 | NBT600 | UNB1180 | UNBT1180L | 3PN1600 | E1600 | ||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||||
| Wirth | TPK1000 | TPK1600 | TPK2000 | |||||||
| LS National | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A | ||||
| Ellis | E-447 | E-2200 | ||||||||
| Drillmec | 9T1000 | 12T1600 | ||||||||
| OTHER BRANNER: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS,WILSON, GASO, SKYTO, BREWSTER, WETHERFORD | ||||||||||
